Working in the Tag Cross Reference pane

The Tag Cross Reference pane provides a set of standard functions.

Element	Function
Group by	Groups tags by Location (alarms, pages, trends and so on) or Tag name
Show	Filters tags and displays: All Reference: all tags Invalid Tag Reference: tags not listed in the Tag Editor. Unused Tags: tags listed in the Tag Editor but not used in project.
Search field	Applies a filter to display a limited number of tags
Filter by	Filters tags by Location, Tag or Property.

Navigate the listed tags to find where they are used inside the project.

Double-click on a tag to open the editor or page where it is used.

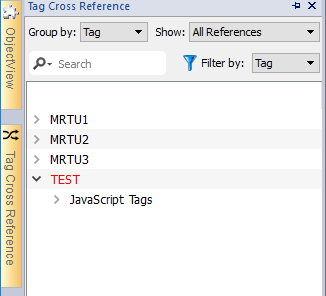

Invalid tag references will be listed in red color:

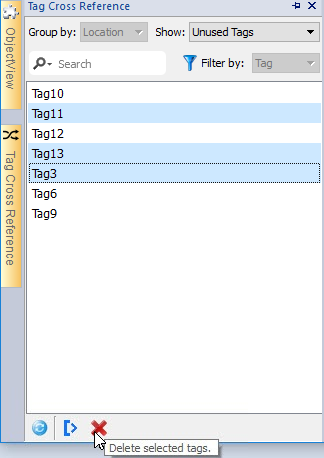

Delete unused tags

From the unused tags view, is possible select one or more tags and delete them from the tag editor. To select a tag click a tag, to select multiple tags use SHIFT or CTRL keys.

Be aware that eventually tags referenced inside JavaScript may not be found (depends on how the code was written). Even it is not a good practical to using tags’ references inside custom widgets, even tags’ referenced inside Custom Widgets may not be detected from the Tag Cross Reference engine.
