Tag find and rename

Tag find and rename feature will rename a tag reference inside the entire project.

Note this feature can be used not only to rename tags, but even to change values from each columns of the tags editor



Parameters
Column	Select the column to modify with the find and rename operation
Rename Names in Dictionary	The tags’ names rename will be extend to rename even to the internal dictionary tags’ names. This parameter is useful when you have to substitute the dictionary with another dictionary that contains renamed tags This parameter is available only when the selected column is “Name”
Find what	String to search
Rename with	String to replace
Case sensitive	Takes account of upper and lower case letters
Use regular expression	Enable regular expression in search/replace pattern See https://en.wikipedia.org/wiki/Regular_expression for additional details regarding regular expressions. When regular expression is enabled, the “Find what” parameter will not offer predefined values but only free text handling.

RENAME SELECTED

Execute the rename only for the selected tags

RENAME ALL

Execute the rename for the entire tags database

References used in Java script and within custom widgets will not update.
Undo is not supported for this command



Regular expression example

Using the tags list of the above picture.

If you want add a prefix to all tags you don’t need to use regular expression:

	Find what:	MRTU
	Rename with	PLC01_MRTU

But if you want add a postfix, you need to use a regular expression:

	Find what:	MRTU(.*)
	Rename with	MRTU\1_PLC01

Where

	(.*)	is meaning any sequence of characters
	\1	is a copy of the first sequence of characters enclosed by (...) found inside the search string

If you want to remove a prefix, you need to use regular expression:

	Find what:	^(prefix)
	Rename with	empty

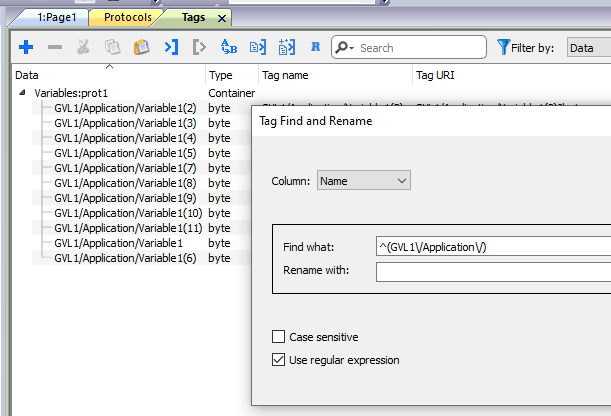

For example, the filter in the following figure:

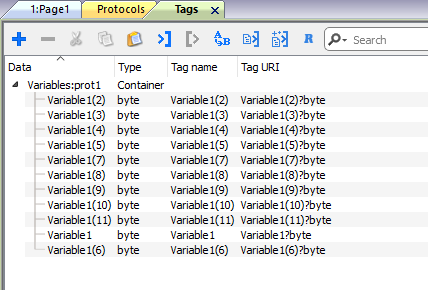

Produces this result:
