Keypad type

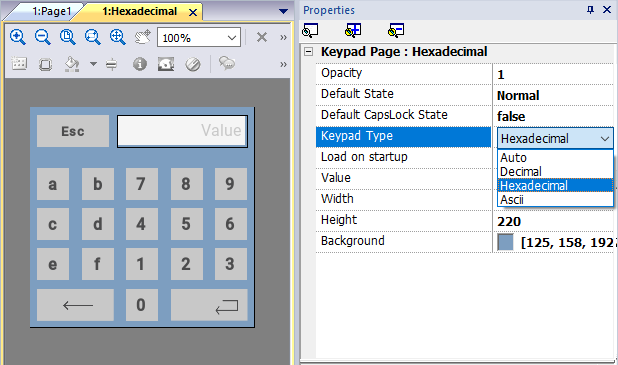

Path: ProjectView> Keypads > double-click a keypad > Properties
Set Keypad Type parameter for a keypad to define the type of data entry.
| Keypad Type | Description |
|---|---|
|
Auto |
Default setting |
|
Decimal |
Only numeric keys are accepted. Entering 10, the keypad returns 10 that will be displayed as "10" if the attached field is numeric or ASCII, as 'A' if the attached filed is hexadecimal. |
|
Hexadecimal |
Only hexadecimal keys are accepted. Entering 10, the keypad returns 16 that will be displayed as "16" if the attached field is numeric or ASCII, as "10" if the attached field is hexadecimal. |
|
Ascii |
All keys are enabled. Entering 1A, the keypad returns 1A that will be displayed as '1' if the attached field is numeric, as "1A" if the attached field is ASCII or if the attached field is hexadecimal. |
