Control list widget

Path: Widget Gallery> Advanced> Control List

Use these widgets to represent the status associated with a particular process and to control that process from the same widget.

Not yet available in the new gallery (use the old gallery to get this widget)

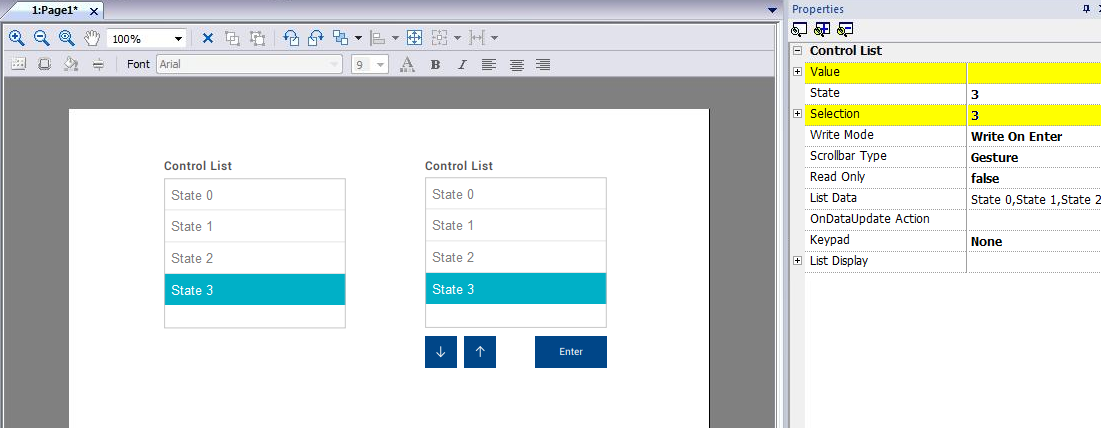

Two types of control lists are available:

• a group control list, with a limited set of navigation button already included, and
• a basic control list with no pre-configured button to be navigated using the touch screen feature.

Parameter	Description
Value	The value corresponding to the status of the widget. If there is a tag attached to the value property, when loading the widget, the State will be aligned with the tag value.
State	State of widget. The widget highlights the item related to its State with a different background color (see "state color" in the properties of the widget).
Selection	State selection. The selected item will be displayed with a small triangle on the left side of the list.
Write Mode	Select the State update mode Write On Select: The state is updated automatically to be aligned with the cursor position. Write On Enter: The status is updated with the cursor position only when the user presses enter
Scrollbars Type	Select the scroll mode of the table Gesture: Pan gesture can be used to smoothly scroll the table. Scrollbar: Use the scrollbar to scroll the table
Read Only	Defines whether the list is only an indicator.
List Data	List of status items. Each item has a status name, a corresponding value and a flag that enables to display the item inside the widget.

Defining states

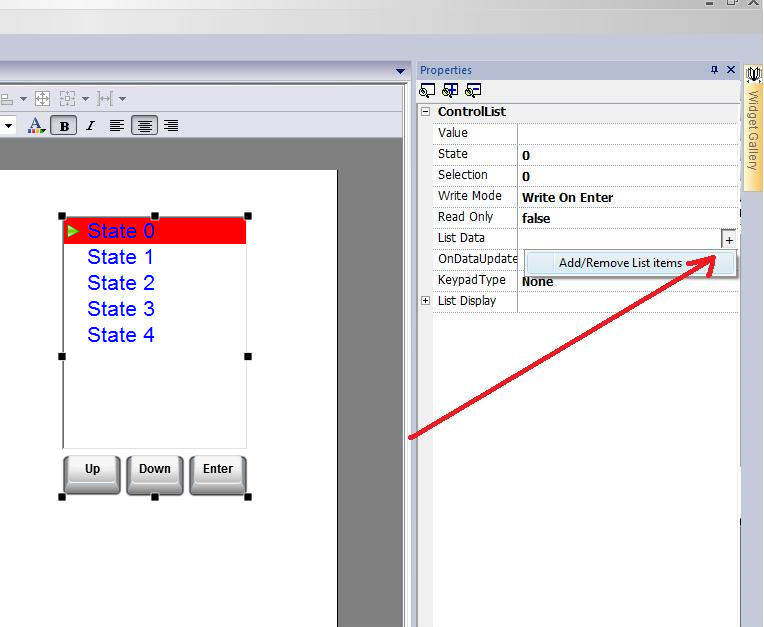

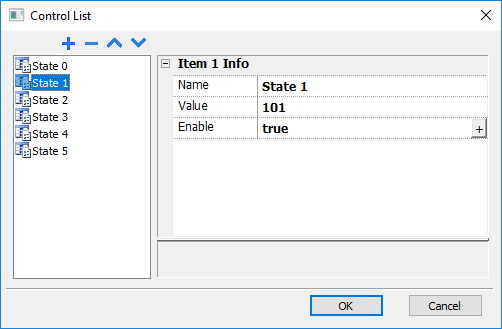

Add/remove states, that is items in the list, from the List Data property.

Any value can be assigned to a state. When you activate the state, by selecting the related item if in WriteOnSelect mode or selecting it and confirming with enter if Write On Enter, this will write the value assigned to state to the tag linked to the Control List widget Value .



Manage list data items from JavaScrip code

The list of data items can be modified, at runtime, from JavaScript code using the setProperty("listData", <NewControlList>). The below example shows how to modify the list of items

function SetItemsList_btn_onMouseClick(me, eventInfo) { var NewControlList = [["OFF",100,true],["ON",101,true],["MAN",102,true],["AUTO",103,true]]; var ControListWgt = page.getWidget("controlListBtn.controlList"); ControListWgt.setProperty("listData", NewControlList); }

Where

-	NewControlList	is an array with the items description
-	controlListBtn.controlList	is the ID of the Control List Widget to modify

The getProperty("listData"), instead, will just return a comma separated string of just the names.

function Read_btn_onMouseClick(me, eventInfo) { var ControListWgt = page.getWidget("controlListBtn.controlList"); var ListData = ControListWgt.getProperty("listData"); }

Where the result of ListData will be: "OFF,ON,MAN,AUTO"

State

The getProperty("state") can be used to retrieve the State value. Here is an example of the JavaScript code

function controlListBtn_onDataUpdate(me, eventInfo) { var ControListWgt = page.getWidget("controlListBtn.controlList"); var State = ControListWgt.getProperty("state"); project.setTag("State", State); return false; }
