Save a license

You may need to create a license file for later activation oh the HMI device.

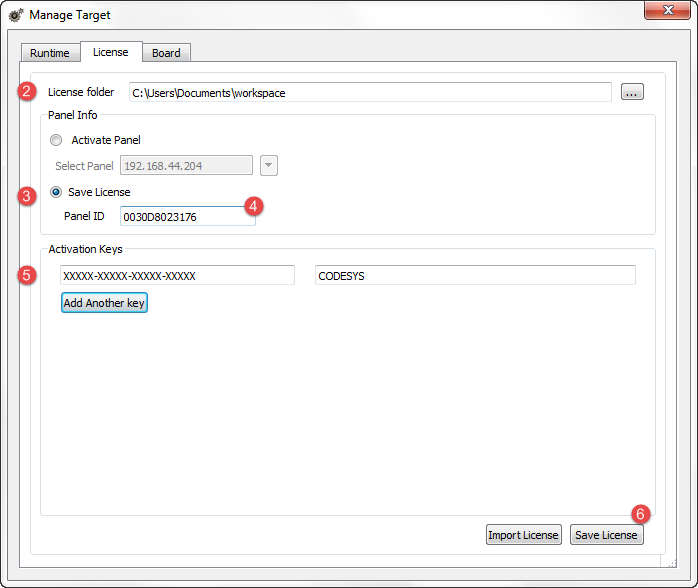

Path: Run> Manage Target

  1. In the Manage Target dialog, click the License tab.
  2. In License folder select the location of your backup license file.
  3. Choose the Save License option.
  4. Enter Panel ID.
  5. Enter Activation Key.

    6. Once you have entered an activation key, the Add Another Key button is enabled, and you can add another activation key.

  1. Click Save License: if the activation key is valid, the license file is stored in the selected folder.

The enabled features or status of the activation keys is displayed in the Feature/status list box.
